Prerequisites
-
Microsoft Access Database Engine 2010 (32 bit)
- ArcGIS Versions 10.1-10.X
- Requires BSD License Server running or a License Subscription
- Enterprise Version Requires SQL Drivers located here
Install Steps
- Install Lightning from our support portal, Lightning Downloads. Lightning will install at C:\Program Files (x86)\Blue Sky Evolution, LLC\Lightning. The Lightning folder Security needs to be set to Allow 'Full Control' for the 'USER' group.
- Open up ArcMap. Right click on the toolbar and show the Lightning tool bar.
-
Go to the Customize option in the header. Click on it to reveal the Extensions menu.
-
Enable the extensions appropriate for your license type (Lightning for Desktop that connects to an Access database and Lightning Enterprise for connecting to a SQL database) and close the box.
-
When you are connected to your license the Lightning Toolbar will be colorized (on).
CLOUD LICENSING
- If you are consuming your license through the Cloud Licensing Service, the Lightning Menu Bar will open without color.

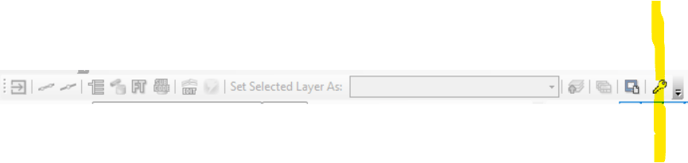

- Click on the KEY icon
- Sign in using your Email and provided/adjusted Password
- Check the desired license from the options available.
- From the available license, one will be consumed by your computer and your Lightning toolbar will be activated/ turned on.
