      Sheet Group

      Sheet Groups

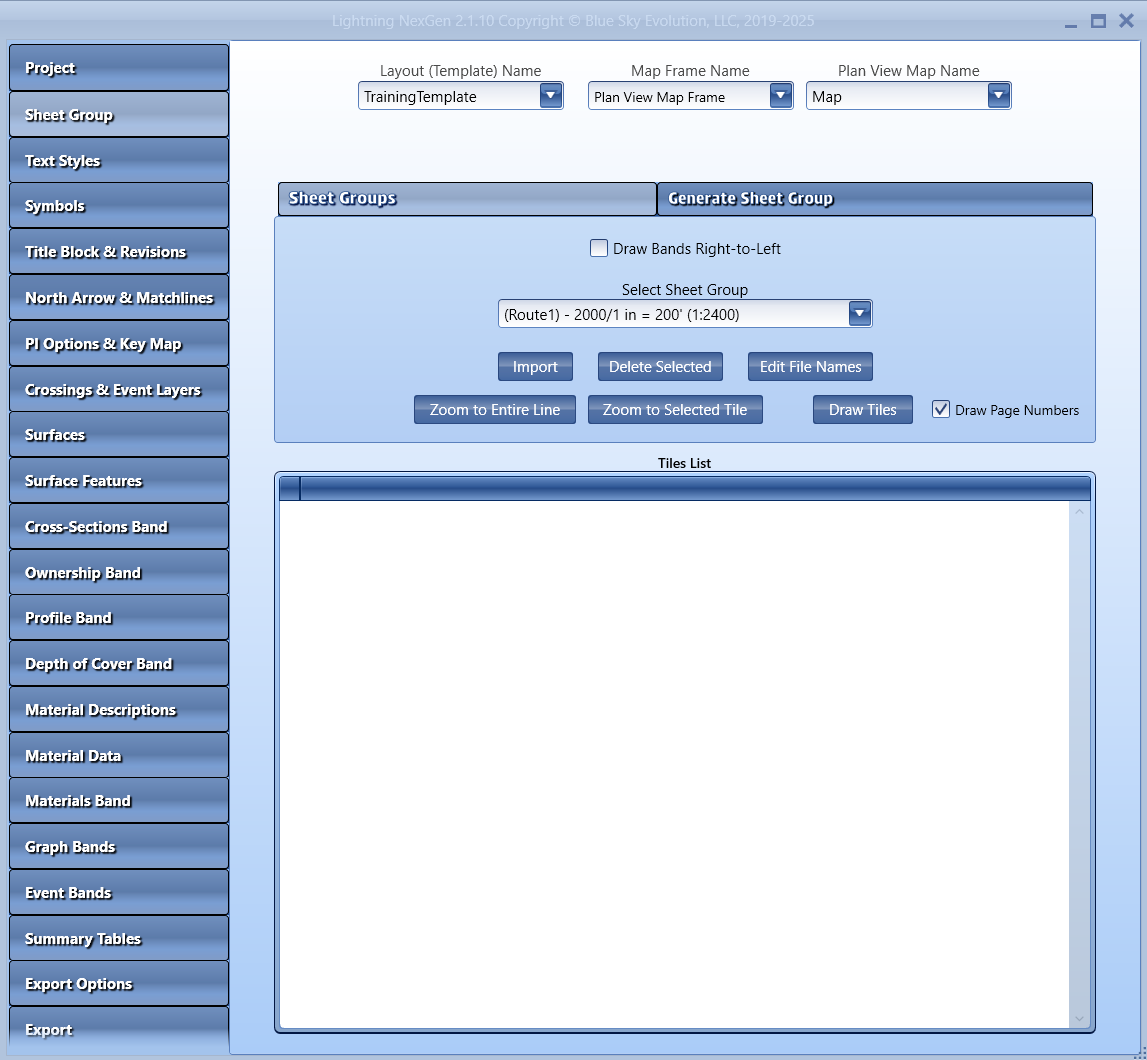

      From this tab you can see your imported Tiles (if you have them), as well as perform some limited editing and searching through the interface.

      NOTE: The Sheet Group tab is where you will define your sheet group, as well as determine it's scale, maximum feet/sheet, and inches used/sheet.

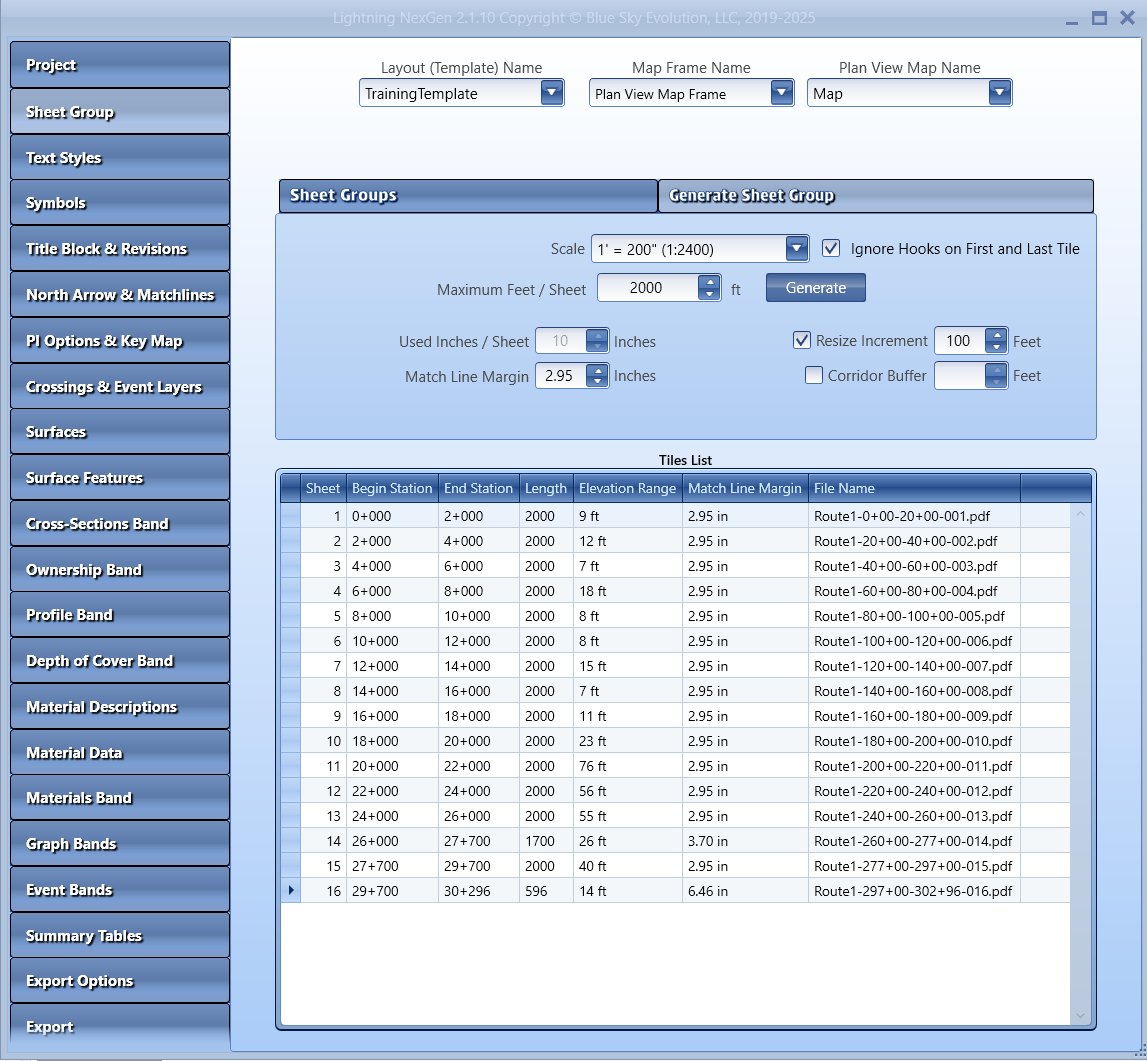

      Generate Sheet Group

      This page allows you to generate your Sheet Group after selecting the desired Scale and Maximum Feet/Sheet.

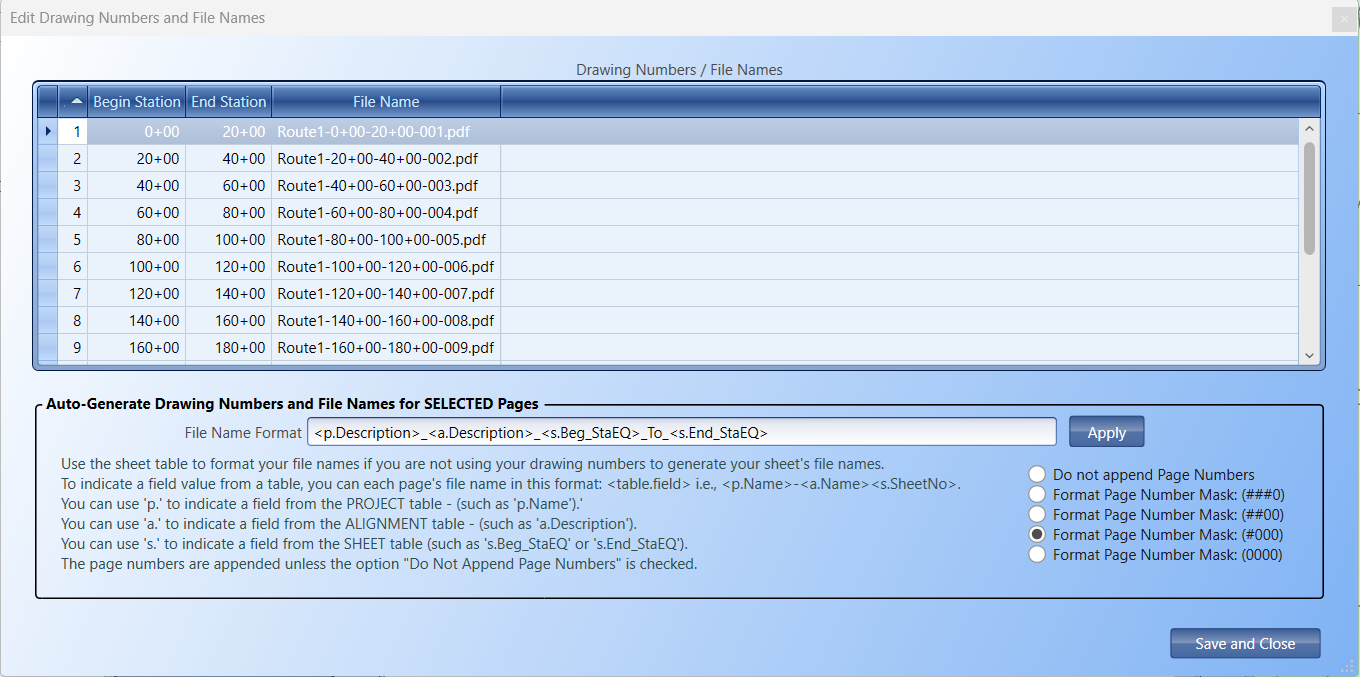

      Edit Drawing Numbers and File Names:

      This dialogue appears when you Generate your Sheet Group. It gives you the option to adjust the File Names for your sheets. You can make changes in the format using the instructions below it, and see your changes take effect when you click "Apply".
